Transferrable Heating Stage

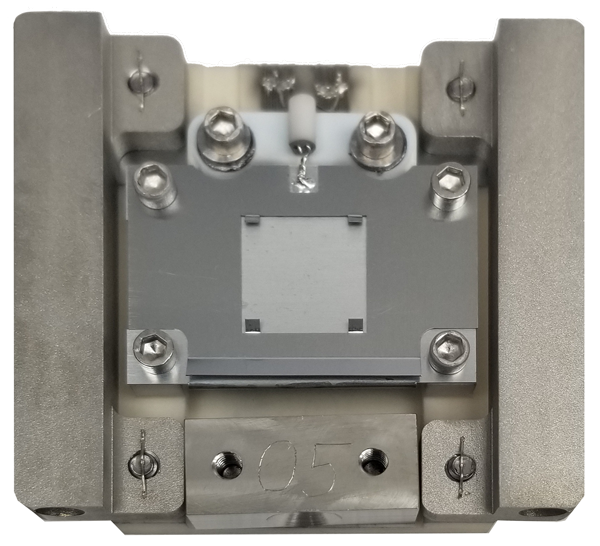

This transferrable sample carrier/heating stage can carry crystal substrates (10 mm X 10 mm version shown here) into a sputtering chamber. The heater and thermocouple are integrated into the sample carrier, such that when the sample carrier is loaded onto the deposition manipulator it makes the requisite electrical connections to the manipulator. The integrated PBN/PG heating element can reach a temperature of 1200 °C inside 100 mTorr Nitrogen atmosphere.
Transferrable heating stage - Volkvac Instruments | UHV Design

Past Projects

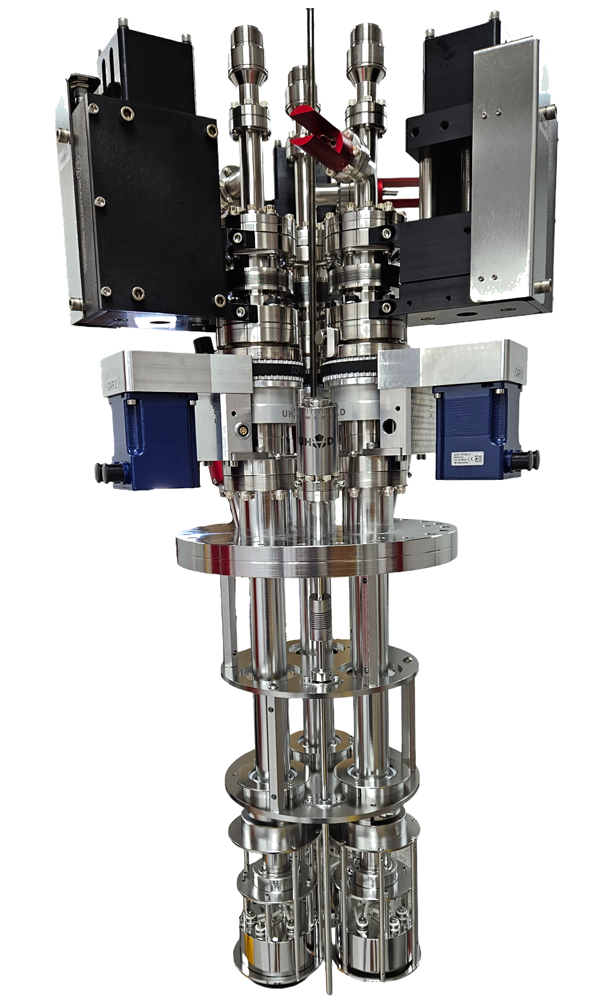

Triple Heater Deposition Manipulator
